Andromat^® AMX Manipulator

Our Andromat® AMX manipulators are modular in design and provide pick & place applications as well as fast and precise gripping.

The manipulator type is specified by payload (weight of part) and needed gripping distances. Developed for foundries, forges and steelworks, even under extreme ambient conditions.

Our manipulators provide an ergonomic and economical workspace for your production. Our equipment maintains a 98.6% uptime for both safety and reliability under the most extreme environmental conditions.

Each Andromat® AMX manipulator can be provided on a carriage. Based on existing environmental conditions we adapt all specific features (track width, speed) of our solution. Each carriage — whether linear, circular or special functional — is individually adapted to your requirements.

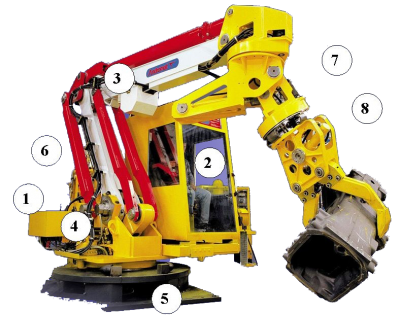

Efficient Simplicity

Our machine concept provides a recognizable reduction of maintenance efforts by:

– Reduction of various lubrication points to a centralized lubrication,
– Optimized installation and standard-compliant laying of the hydraulic hoses,
– Using of sealed SKF Explorer bearings at each bearing position,
– Integration of hardened, grounded and against twisting secured axles

Customer Focused Diagnostic Functions

Important values can be measured directly at the measuring points of our Andromat® control card and can be compared with target values.

The operator cabin of our Andromat® AMX manipulator has an HMI (Human Machine Interface as TFT display) to show all measured values as well as possible setpoints. Furthermore we support our Andromat® AMX with comprehensive diagnostic functions; the complete machine is displayed in a simple and understandable view.

We also offer a service interface for fast remote diagnostics via remote access. With our hand terminal you can activate individual movements of the three main axes of our Andromat® AMX by manual mode.

"State-of-the-Art" Control Concept

Proven and innovative control concept with remote diagnostic connection for PLC and Digital Andromat® control card.

Our Digital Andromat® control card synchronises our master arm movement directly with the working arms. The digital Andromat® control card can be connected to any standard control system via Profibus/Profinet/Ethernet IP. HMI for machine parameterization and extended diagnostic possibilities (operating and error message).

AMX Model Lineup

Available in payloads from 20 kg to 181 kg — each model engineered for its specific application.

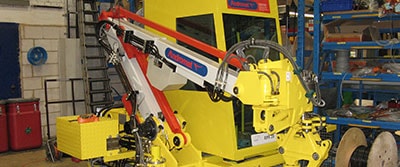

AMX 20

Compact and agile, the AMX 20 handles light castings with precision in tight foundry spaces. Modular design allows quick adaptation to varying part geometries.

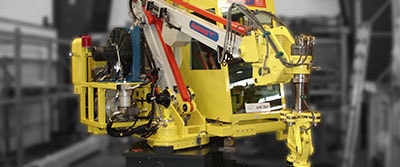

AMX 20C

The AMX 20C variant offers enhanced gripper configurations for complex part geometries and continuous die casting production.

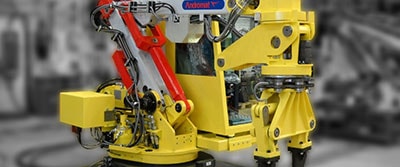

AMX 40

Mid-range payload with fast cycle times, ideal for continuous production in die casting and light forge operations.

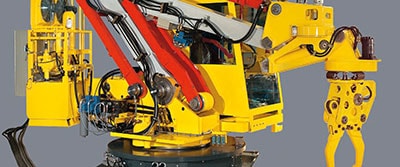

AMX 60

Reliable and robust, the AMX 60 is a workhorse for medium foundry and forge operations with demanding cycle requirements.

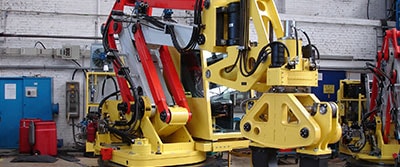

AMX 80

High-capacity handling with precision control — built for demanding forge environments and heavy casting operations.

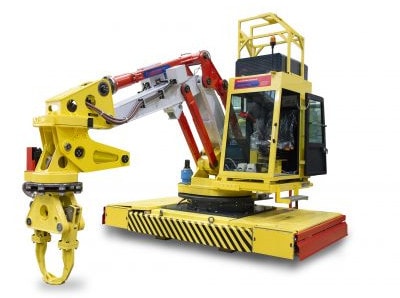

AMX 181

Heavy-duty manipulator for large castings and steelwork, with full modular adaptability and 98.6% uptime reliability.
